Akustik Ceiling Suspensions: Insulation and Acoustic Comfort

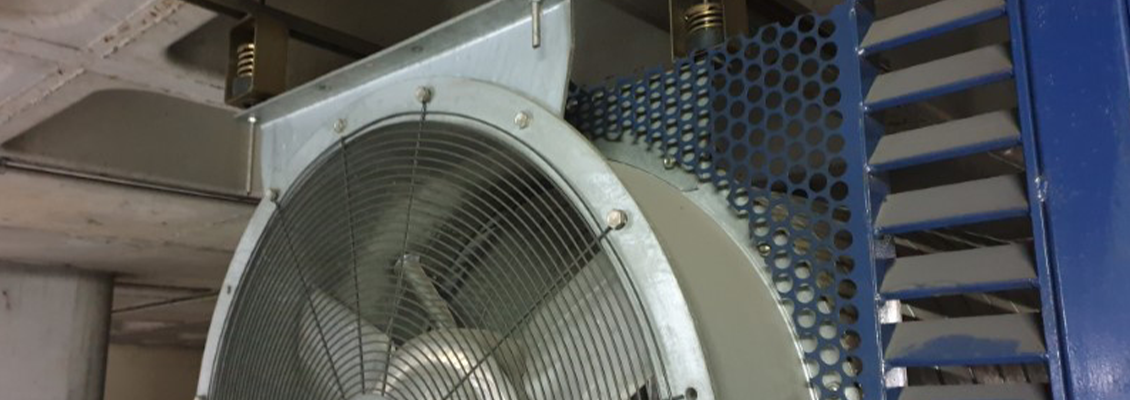

The AMC-Mecanocaucho® Akustik Ceiling Suspension anti-vibration mounts are specifically designed for the suspension of acoustic false ceilings, piping, and vibrating machines. Thanks to the properties of natural rubber, these suspensions provide superior isolation performance compared to cork or other similar materials. Manufactured using two specific blends of natural rubber (45Sh & 60Sh), these mounts ensure effective vibration absorption and optimal energy dissipation. Their versatility makes them suitable for various industrial, institutional, commercial, and residential environments, ensuring perfect adaptation to different load requirements.

Noise pollution and structural vibrations are major challenges in the design of modern buildings and industrial facilities. Akustik ceiling suspensions offer a precise technical solution for decoupling ceilings and piping systems from the main structure. Using high-quality polymers or calibrated springs, these isolators block the transmission of impact noise and mechanical vibrations, ensuring a quiet environment that complies with the most stringent acoustic standards.

A wide range of metal frames and fastening elements facilitate installation and allow for seamless integration into all types of projects. Their robust structure enables them to withstand tensile loads ranging from 650 kg to 1000 kg. Additionally, their anti-corrosion treatment enhances their durability, even in the most demanding environments. With an optimized design, these mounts are easy to install and perfectly suited for contractors specializing in interior systems.

Akustik®
  • Ceiling supports
  • Wall supports
  • Floating floor supports
Akustik+AMC-MECANOCAUCHO®
  • Ceiling supports
  • Wall supports
  • Floating floor supports
  • Antivibratory supports

Complete Catalogue          Request for a technical drawing

For over 45 years, we have been supplying quality products capable of surpassing the most demanding tests. In this respect, knowledge of the right production processes and the use of top-quality raw materials is vital.  We keep over 4.5 million euros worth of finished products in stock. This inventory is very important to be able to respond quickly to customer needs.

Akustik + AMC Mecanocaucho         Request for a technical drawing

The Akustik + AMC Mecanocaucho® mounts are specifically designed for the suspension of acoustic false ceilings and machines operating at speeds above 1000 RPM. These anti-vibration suspensions help reduce structural noise, an unpleasant nuisance for the human ear. From an environmental perspective, structural noise is a growing form of pollution due to urban development. Once the nature and intensity of the disruptive noise are identified, installing a suitable acoustic suspension system becomes an effective solution for noise isolation.

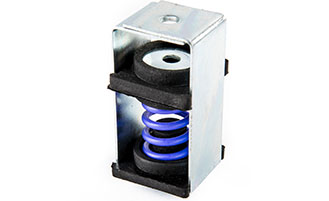

Ceiling Isolators ST Steel Spring & Rubber         Request for a technical drawing

The ST AMC Mecanocaucho® mounts are designed for the suspension of acoustic false ceilings and machines operating at speeds above 450 RPM. They are manufactured with a high-quality “piano wire” steel spring, providing excellent mechanical resistance, and are guided by two rubber plates. These antivibration suspensions help reduce structural noise, a particularly unpleasant nuisance for the human ear. From an environmental perspective, this type of noise is an increasingly common form of pollution, especially due to urban development. Once the source and intensity of the disruptive noise are identified, installing a suitable acoustic suspension system becomes an effective solution to limit its propagation.

Ceiling Isolators VT-NT Steel Spring & Rubber         Request for a technical drawing

The VT-NT Ceiling Isolators AMC-Mecanocaucho® offer natural frequencies ranging from 5Hz to 3Hz. This range is specifically designed for the suspension of acoustic false ceilings and for machines operating at speeds of 450 RPM or higher. Manufactured with a high-performance mechanical spring, these isolators incorporate a rubber washer to eliminate “acoustic bridges” and prevent contact with a misaligned threaded steel rod. Their robust metal structure is coated with a bichromate electrolytic layer, ensuring high durability and resistance.

Acoustic Hanger for Wall EP         Request for a technical drawing

The EP AMC Mecanocaucho® mounts are wall fixings available in various formats to suit different construction methods chosen by installers. These mounts are particularly suitable for walls higher than 3.5 meters. To determine the number of EP isolators needed, it is recommended to install one piece per stud every 1.5 meters in height. For example, for a 4.5-meter partition, two isolators per stud would be placed at 1.5 meters and 3 meters. These anti-vibration suspensions help reduce structural noise, a particularly unpleasant nuisance for the human ear. From an environmental perspective, this type of noise is an increasingly widespread form of pollution, particularly due to urban development. Once the source and intensity of the disruptive noise are identified.

Floating Floor Mount BF & G         Request for a technical drawing

The BF & G AMC Mecanocaucho® mounts are specially designed for use under floating floors or machines operating at speeds from 700 RPM. Made of rubber, these elements provide excellent vibration isolation properties. They are available in different diameters and heights to suit the specific needs of each application. These anti-vibration suspensions help reduce structural noise, a particularly unpleasant nuisance for the human ear. Environmentally, this type of noise is an increasingly common form of pollution, especially with urban expansion. Once the source and intensity of the disruptive noise are identified, it becomes possible to implement a suitable isolation solution.
