Rubber-Metal Insulators and Anti-Vibration Mounts

The AMC-Mecanocaucho® Rubber-Metal anti-vibration mounts are ultra-robust isolators, specifically designed for stationary or mobile machines incorporating moving or rotating components that generate vibrations. They are also suitable for the most demanding environments, including military and forestry applications. Vibration produced by a machine can cause various issues, such as a reduction in its lifespan due to component fatigue, as well as the transmission of vibrations to nearby non-isolated structures, leading to noise and vibration disturbances.

The selection of a rubber-metal isolator should not be done at random. To ensure effective vibration isolation, the stiffness of the elastomer compound must be matched to the actual load of your equipment. At Pascalex, we offer a rigorously selected range of mounts capable of absorbing shocks and breaking sound bridges, whether for marine engines, industrial compressors, or mobile agricultural machinery.

With over 50 years of expertise, AMC-Mecanocaucho® has developed a range of rubber-metal mounts capable of solving these challenges on all types of machines, whether stationary or mobile. These solutions also help protect people and the environment from the harmful effects of noise and vibrations.

A complete range of isolators

A complete range of AMC Mecanocaucho® vibration isolators in rubber & metal design enables us to solve 99% of vibration problems in all types of industrial, marine, railway, military, forestry, mining, agricultural, commercial, institutional, residential etc. applications, whether mobile or stationary.

Anti-vibration solutions for every need

If you’re looking for one of these vibration control products and we don’t have it in stock, we’d be delighted to find it for you or simply develop it for your needs: vibration isolator, anti-vibration isolator, anti-vibration isolator, rubber isolator, seismic isolator, anti-seismic isolator, earthquake isolator, sandwich isolator, shear isolator, leveling isolator, shock isolator, intercalated isolator, bell isolator, low-frequency isolator, medium-frequency isolator, high-frequency isolator, high-deflection isolator, industrial vibration isolator, machinery isolator, center-bolted isolator, two-piece isolator, cylindrical isolator, vibration damper, anti-vibration pad, silent-bloc, motor mount, marine mount, anti-vibration cushion, rubber element, anti-vibration plates, anti-vibration mat, etc.

Complete Catalogue Request for a technical drawing

Any machine whose design incorporates moving or rotating elements produces an imbalance known as vibration. This vibration produced by a machine leads to various problems, such as a reduction in the useful life of the machine itself due to fatigue of its components, as well as the transmission of this vibration to other non-isolated neighboring structures, giving rise to noise and vibration transmission problems. For over 40 years, AMC Mecanocaucho® has been developing a range of rubber-metal anti-vibration mounts that can solve problems such as those described above on all types of machine, whether mobile or stationary. And at the same time, protect people and the environment from the harmful effects of noise and vibration.

Our products can be used in the following sectors in particular:

Electric power generation
Ventilation equipment
Air compression
Liquid pumping
Industrial vehicles

Machine tools
Marine propulsion and auxiliary equipment
Construction and agricultural machinery
Acoustic insulation of buildings, etc.

Rubber metal insulators by product

BSB Request for a technical drawing

The BSB AMC-Mecanocaucho® anti-vibration mounts are designed to function in compression-shear mode, ensuring an optimal balance between stiffness and horizontal stability. These engine mounts are particularly suitable for applications requiring increased suspension stability, such as isolating rotating and mobile machinery exposed to shocks, oil or diesel spills, and harsh weather conditions. Their design includes an internal fail-safe limiter, preventing the rubber from working in tension and limiting upward vertical movement. For applications where vibration isolation is a priority, it is recommended to opt for the BRB AMC-Mecanocaucho® range.

BRB Request for a technical drawing

The BRB AMC-Mecanocaucho® anti-vibration mounts utilize compression-shear technology and are characterized by an increased height, providing greater elasticity and a lower natural frequency. This range is ideal for applications where vibration isolation is a priority. The BRB bell-type mounts are particularly recommended for rotating and mobile equipment, such as generators, which are subject to shocks, oil or diesel spills, and adverse weather conditions.

BRB-X Request for a technical drawing

The BRB-X AMC-Mecanocaucho® anti-vibration mounts made of stainless steel, retain the benefits of the BRB models. Their stainless steel construction ensures excellent resistance to chemical agents, including sulfuric acid, as well as marine environments, making them an ideal solution for the food, paper, and construction industries. Their optimized height provides better elasticity and a lower natural frequency, enhancing vibration isolation efficiency. Ideal for rotating and mobile machinery, these mounts are specifically designed to withstand shocks, oil or diesel spills, and saline or food processing environments.

BRT Request for a technical drawing

The BRT AMC-Mecanocaucho® anti-vibration mounts are developed to function in compression-shear mode, ensuring optimal horizontal stability. Their design makes them particularly suitable for use as stabilizers for electrical cabinets. Thanks to their specific geometry and fail-safe prevention system, they provide excellent vertical support. The upper bell incorporates cross-shaped lines, reinforcing structural rigidity and facilitating the drainage of liquids such as industrial oils.

MD Request for a technical drawing

The MD AMC-Mecanocaucho® anti-vibration mounts feature a similar design to the BSB and BRB models but offer superior damping capabilities. Their specific rubber compound ensures a high level of vibration isolation and increased stability for suspended equipment. A metallic bell protects the mount from oil splashes, while an electrolytic treatment ensures corrosion protection in compliance with RoHS standards. An internal fail-safe limiter prevents the rubber from working in tension, limiting upward movement. These mounts are ideal for small 1-, 2-, and 3-cylinder diesel engines, which are particularly prone to imbalance due to combustion cycles.

MF Request for a technical drawing

The MF AMC-Mecanocaucho® anti-vibration mounts are specially designed for mobile applications, thanks to their exceptional robustness. Their unique design offers three distinct stiffness levels depending on the axis: very soft on the vertical axis, stiffer on the longitudinal axis, and even softer on the lateral axis, ensuring better vibration isolation in this direction. They are particularly recommended for isolating rotating and mobile machinery exposed to shocks, oil, and diesel leaks. Ideal for marine propulsion engines.

MF-X Request for a technical drawing

The MF-X AMC-Mecanocaucho® anti-vibration mounts, made of stainless steel, retain the characteristics of the MF models while offering enhanced corrosion resistance. Their stainless steel construction ensures excellent resistance to chemical agents, including sulfuric acid, as well as marine environments, making them an ideal solution for the food, paper, and construction industries. Their axis-specific stiffness design helps reduce roll natural frequencies in engines, improving their stability. These mounts are particularly suited for rotating and mobile machinery subjected to shocks, oil, and diesel leaks. Ideal for marine propulsion engines.

Marin XD Request for a technical drawing

The Marin-XD AMC-Mecanocaucho® anti-vibration mounts are designed for mobile applications requiring optimal vibration isolation. Their specific design allows for very low axial and radial stiffness, making them ideal for low-speed engines. The solid and durable metal components incorporate a tear-off prevention system, enabling them to withstand tensile forces. Thanks to their low vertical stiffness, these mounts are perfect for three-cylinder engines operating at low speeds. The maximum leveling adjustment is 3mm; for larger adjustments, it is recommended to use SHIM under the isolator.

Marin-XT Request for a technical drawing

The Marin-XT AMC-Mecanocaucho® anti-vibration mounts are designed for mobile applications requiring optimal vibration isolation. Their specific design allows for very low axial and radial stiffness, making them ideal for low-speed engines. The solid and durable metal components incorporate a tear-off prevention system, enabling them to withstand tensile forces. Thanks to their low vertical stiffness, these mounts are perfect for three-cylinder engines operating at low speeds. The maximum leveling adjustment is 3mm; for larger adjustments, it is recommended to use SHIM under the isolator.

DRD Request for a technical drawing

The DRD AMC-Mecanocaucho® anti-vibration mounts offer high elasticity both radially and axially, making them perfect for machines generating vibrations in all three axes. Their internal design is similar to the DSD models but with greater elasticity, allowing for a higher degree of isolation when needed. The metal components are protected against corrosion through an electrolytic treatment, ensuring resistance to extreme weather conditions. The rubber hardness is engraved directly onto the metal parts, with multiple options available: 45Sh, 60Sh, and 75Sh. These mounts are primarily intended for stationary applications.

DSD Request for a technical drawing

The DSD AMC-Mecanocaucho® anti-vibration mounts offer exceptional elasticity both radially and axially, making them ideal for machines generating horizontal vibrations. Their design is based on two steel metal frames: a circular upper frame with a hole and nut for securing the machine and chassis, and an elliptical lower frame equipped with two lugs for secure floor mounting. These two frames are connected by a dome-shaped rubber mass, ensuring effective vibration absorption regardless of the axis. Primarily intended for stationary applications, these mounts are also available with a protective dome to shield against liquid drips and UV rays, ensuring increased durability.

SN Request for a technical drawing

The SN AMC-Mecanocaucho® anti-vibration mounts are versatile and suitable for various applications, including the maritime sector. They are particularly recommended for marine engines and small fishing boats with an excitation frequency below or close to 1000 rpm. Beyond the naval industry, these mounts can be used in numerous industrial installations requiring high-performance vibration isolation. Primarily designed for stationary applications, they effectively reduce vibrations, contributing to improved equipment durability and acoustic comfort.

Cylindrical Request for a technical drawing

The AMC-Mecanocaucho® Cylindrical anti-vibration mounts are designed for flexible mounting and to meet various needs, particularly for elastic suspension to isolate vibrations from machines and mechanical equipment. Their structure consists of a central rubber component connected to two parallel metal frames at the ends, allowing fixation with two nuts (Type A), two screws (Type C), or a combination of both (Type B). Depending on the application, the rubber can be cylindrical, ensuring higher load capacity, or diabolo-shaped, promoting increased elasticity in all directions. These mounts are also available in different rubber variants and silicone, subject to a minimum order depending on dimensions.

Stainless Steel Cylindrical Request for a technical drawing

The AMC-Mecanocaucho® Stainless Steel Cylindrical anti-vibration mounts are designed for flexible mounting and to meet various needs, particularly for elastic suspension to isolate vibrations from machines and mechanical equipment. Their structure consists of a central rubber component connected to two parallel metal frames at the ends, allowing fixation with two nuts (Type A), two screws (Type C), or a combination of both (Type B). Depending on the application, the rubber can be cylindrical, ensuring higher load capacity, or diabolo-shaped, promoting increased elasticity in all directions. These mounts are also available in different rubber variants and silicone, subject to a minimum order depending on dimensions.

Diabolo Cylindrical Request for a technical drawing

The AMC-Mecanocaucho® Diabolo Cylindrical anti-vibration mounts are designed for flexible mounting and to meet various needs, particularly for elastic suspension to isolate vibrations from machines and mechanical equipment. Their structure consists of a central rubber component connected to two parallel metal frames at the ends, allowing fixation with two nuts (Type A), two screws (Type C), or a combination of both (Type B). Depending on the application, the rubber can be cylindrical, ensuring higher load capacity, or diabolo-shaped, promoting increased elasticity in all directions. These mounts are also available in different rubber variants and silicone, subject to a minimum order depending on dimensions.

Trapezoidal & Annular Cylindrical Request for a technical drawing

The AMC-Mecanocaucho® Trapezoidal & Annular Cylindrical anti-vibration mounts are designed for flexible mounting and to meet various needs, particularly for elastic suspension to isolate vibrations from machines and mechanical equipment. Their structure consists of a central rubber component connected to two parallel metal frames at the ends, allowing fixation with two nuts (Type A), two screws (Type C), or a combination of both (Type B). Depending on the application, the rubber can be cylindrical, ensuring higher load capacity, or diabolo-shaped, promoting increased elasticity in all directions. These mounts are also available in different rubber variants and silicone, subject to a minimum order depending on dimensions.

plot-cylindrique-trapezoidaux-annulaires

Buffer & Bumper Request for a technical drawing

The AMC-Mecanocaucho® Buffer & Bumper anti-vibration mounts are designed to limit the movement of mechanical parts and absorb shocks, preventing noisy impacts and premature wear. By utilizing rubber, these bumpers effectively eliminate noise pollution and extend the service life of equipment. Two types of bumpers are available: Simple Bumper: Featuring a flat rubber surface, it provides immediate shock absorption without excessively prolonging the movement of the component. Progressive Bumper: With a conical structure, it ensures gradual contact and optimized energy absorption, reducing shock intensity without excessive effort. These mounts are particularly suited for applications involving repeated and periodic impacts.

Cone Request for a technical drawing

The AMC-Mecanocaucho® Cone anti-vibration mounts ensure optimal stability by preventing the tilting of suspended elements while effectively reducing the transmission of vibrations and noise to the surrounding structure. They can be equipped with stop and centering washers, preventing excessive deformation even under extreme loads. Additionally, these washers protect the natural rubber from aging due to ozone exposure, metal impacts, and oil leaks. Cone type mounts exhibit relatively linear deformation curves, gradually adapting to increasing loads. They can withstand exceptional loads up to three times the maximum allowable load. Some variants include internal cavities that allow rigidity adjustments along the longitudinal or lateral axis, depending on their positioning in the operating environment.

Hydraulic Request for a technical drawing

The AMC-Mecanocaucho® Hydraulic anti-vibration mounts combine a spring and a hydraulic damper in a single component, providing dynamic characteristics that can be adjusted to meet specific application needs. Their design includes an internal anti-rebound system, preventing the rubber from working in tension and limiting upward vertical movements. With their robust and thick metal parts, these mounts are perfectly suited for mobile applications, offering high resistance to dynamic loads. The metal components undergo an anti-corrosion treatment that complies with RoHS standards, ensuring long-term durability even in harsh environments. Additionally, the mount’s internal structure has been optimized with a metallic fastening system that adheres perfectly to the rubber, preventing hydraulic fluid leakage in cases of significant overloads.

Hydrocone Request for a technical drawing

The AMC-Mecanocaucho® Hydrocone anti-vibration mounts combine the advantages of conical and hydraulic mounts to provide an efficient solution for vibration absorption and stability of suspended assemblies. Thanks to their integrated hydraulic system, they feature low vertical stiffness and excellent energy dissipation, while their conical structure ensures high radial stiffness, guaranteeing optimal stability. By selecting them with greater elasticity than traditional conical mounts, they achieve an increased vibration attenuation rate. The hydraulic piston also acts as an fail-safe device, limiting traction movement amplitude and offering resistance suited to the dynamic loads of mobile applications. Additionally, an integrated end-stop ensures a second phase of absorption in case of overload. Lastly, the metal components receive an anti-corrosion treatment, ensuring optimal resistance to harsh environments.

Flange Cone Request for a technical drawing

The AMC-Mecanocaucho® Flange Cone anti-vibration mounts are specifically designed to provide high axial elasticity under heavy loads. Thanks to their elastomer with low dynamic stiffness, they achieve low natural frequencies, improving vibration isolation while ensuring excellent stability of the suspended assembly. Since radial stiffness is higher than axial stiffness, these mounts are ideal for applications requiring high horizontal stability. The Cone 100 model includes an integrated leveling system, allowing easy alignment of transmission axes without additional accessories. It is also equipped with an anti-tear system and reinforced metal structure, making it particularly suitable for environments exposed to strong impacts.

CB Request for a technical drawing

The AMC-Mecanocaucho® CB anti-vibration mounts are designed to be installed in pairs, face to face, with a through bolt and washers at the ends. Their structure includes an external metal flange that protects the anti-vibration element from friction, eliminating the need for complex machining during installation. A simple laser cut of the metal parts is sufficient. These mounts provide greater elasticity in the radial direction than in the axial direction, making them particularly beneficial for machines requiring effective radial vibration isolation. When installed face to face, they can achieve the following elasticity characteristics: Vertical displacement: ±6 mm. Horizontal displacement: ±3 mm. Nine CB models are available with different hardness levels, offering static load capacities ranging from 8kg to2000 kg per mount. The metal parts are rubber-coated, enhancing their resistance to corrosion.

TF Request for a technical drawing

The AMC-Mecanocaucho® TF anti-vibration mounts consist of two symmetrical molded parts, specially designed to function in both tension and compression with identical stiffness coefficients. Thanks to their secure mounting with metal washers, they ensure a reliable fixation. They are pre-compressed directly into the machine chassis, with the chassis thickness determining the level of pre-compression of the mount. This type of anti-vibration mount is ideal for applications involving high dynamic loads and precise movement control, particularly in: Cabins of specialized vehicles (forestry, mining, off-road, etc.) Diesel engines subjected to intense vibrations. In addition to providing optimal stability, these mounts ensure excellent shock and vibration attenuation. Five models are available with different hardness levels, offering load capacities ranging from 80kg to 1700kg.

SCH Request for a technical drawing

The AMC-Mecanocaucho® SCH anti-vibration mounts are composed of two rubber elements, one of which integrates an internal metal tube that serves as a guide for the fixing bolt. Pre-compressed onto the machine chassis, their thickness “T” defines the level of applied pre-compression. Designed for high dynamic load applications, they provide excellent movement control. They are particularly suited for: Cabins and diesel engines of off-road, forestry, and mining vehicles. Offering good stability and effective absorption of high-frequency vibrations and shocks, these mounts perform well but are less effective than CB or TF models.

SCHR Request for a technical drawing

The AMC-Mecanocaucho® SCHR anti-vibration mounts consist of two rubber elements, one of which integrates an internal metal tube that serves as a guide for the fixing bolt. Pre-compressed onto the machine chassis, their thickness “T” defines the level of applied pre-compression. An anti-shear flange reinforces the structure by protecting the rubber section inserted into the chassis. Designed for applications involving high dynamic loads, these mounts ensure excellent motion control. They are particularly suitable for cabins and diesel engines in off-road, forestry, and mining vehicles. Offering good stability and effective absorption of high-frequency vibrations and shocks, they remain less efficient than CB or TF models.

SCB Request for a technical drawing

The AMC-Mecanocaucho® SCB anti-vibration mounts operate in compression, with their design and installation preventing rebound for a secure fixation. They stand out for their ease of installation, cost-effectiveness, and compatibility with a wide range of loads. A washer beneath the isolator serves as a stop to enhance safety. These mounts are particularly recommended for applications requiring a reliable protection device.

SCBR Request for a technical drawing

The AMC-Mecanocaucho® SCBR anti-vibration mounts operate in compression, with their design and installation preventing rebound for a secure fixation. They offer ease of installation, cost-effectiveness, and compatibility with a broad range of loads. A washer beneath the isolator acts as a stop to improve safety.
Additionally, an anti-shear flange reinforces the structure by protecting the rubber section inserted into the chassis. These mounts are especially recommended for applications requiring a dependable protective system.

Cabin Mount Request for a technical drawing

The AMC-Mecanocaucho® Cabin Mounts anti-vibration mounts consist of two metal frames connected by high-resilience rubber, ensuring optimal vibration isolation. A dedicated section effectively absorbs shocks and dynamic loads, limiting movement of cabins or other suspended elements exposed to transient impacts. The metal parts are corrosion-resistant, making them suitable for marine and land environments while complying with RoHS regulations. Available in various rubber compositions, these mounts can be optimized based on load and vibration frequency. Our technical team can assist in meeting ROPS test requirements for construction machinery applications.

NP Request for a technical drawing

The AMC-Mecanocaucho® NP anti-vibration mounts consist of a metal flange and a steel tube, both firmly bonded to high-strength rubber. For secure installation, they must be mounted with safety washers placed above and below the isolator. This mounting system ensures equal load capacity in both tension and compression. The washers function as an anti-tear system, providing extremely secure fixation. We recommend using the AMC washer reference: 608074 (76 x 16.5 x 5 mm). The flange includes four fixing holes, while the internal tube supports a maximum tightening torque of 120N/mm.

Articulation Request for a technical drawing

The AMC-Mecanocaucho® Articulation anti-vibration mounts consist of two concentric steel tubes connected by vulcanized rubber with dual adhesion. Thanks to the pre-stress applied to the outer tube, these mounts offer high resistance to heavy loads, in radial, axial, and torsional angles. These mounts are particularly suitable for robust structures requiring both safety and comfort, such as tilting operator cabins that facilitate access to mechanical components. They are ideal for off-road, forestry, and mining equipment.

Eccentric Articulation Request for a technical drawing

The AMC-Mecanocaucho® Eccentric Articulation anti-vibration mounts are based on a design with two misaligned tubes, where the center of the inner ring does not coincide with that of the outer ring. This unique construction provides increased flexibility in the main load direction (vertical) while ensuring optimal control in other directions. The result is excellent damping and effective vibration isolation. These mounts are particularly suited for robust structures requiring both safety and comfort, such as tilting operator cabins that facilitate access to mechanical components. They are ideal for off-road, forestry, and mining equipment.

SH Request for a technical drawing

The AMC-Mecanocaucho® SH anti-vibration mounts consist of a circular element with two internal metal discs and two square external bases with four holes for secure mechanical fixation. Designed to withstand heavy static loads as well as occasional compression overloads, they offer low static deflection and softer radial stiffness. Developed for applications involving significant permanent loads, such as stone crushers, these mounts are available in three models with hardness levels ranging from 45Sh to 70Sh, covering static load capacities from 2 to 40 metric tons per isolator.

VD Request for a technical drawing

The AMC-Mecanocaucho® VD anti-vibration mounts use elastomer in compression-shear mode. Their design incorporates two metal components, facilitating mounting with two integrated screws. The V-shaped structure enables high static deflections under low loads, which lowers the natural frequency, making them ideal for engines running primarily at idle speed. Each mount is engineered with three different stiffness levels along the X, Y, and Z axes, allowing precise tuning of the suspended system’s characteristics for effective vibration isolation. They can also be tilted for additional stability. For this type of installation, we recommend consulting our technical department to validate the model selection.

Marin V Request for a technical drawing

The AMC-Mecanocaucho® Marin V anti-vibration mounts also operate in compression-shear mode. They consist of two metal components, making installation easier with a top screw and two chassis mounting holes. Their V-shaped design allows for high static deflection under low loads, lowering the natural frequency and making them particularly suitable for engines running mainly at idle.With three different stiffness levels along the X, Y, and Z axes, these mounts provide optimized isolation and enhanced stability. The maximum recommended height adjustment for leveling is 3mm.

Generator Mount Request for a technical drawing

The AMC-Mecanocaucho® Generator Mount anti-vibration mounts consist of two symmetrically inclined metal components, each equipped with a fixing screw on both sides. Unlike traditional cylindrical mounts, this design allows for more flexible installation, lowering the natural frequency and improving vibration isolation. Pairing and symmetrical installation optimize stability. These mounts feature two screws of different lengths to facilitate engine-to-chassis mounting. Additionally, they include anti-rotation clips to prevent twisting due to high tightening torques, especially when using pneumatic tools. Available in two hardness levels, these mounts enable over 90% vibration attenuation on single-cylinder diesel or gasoline engines running at 3000 RPM.

SPS Request for a technical drawing

The AMC-Mecanocaucho® SPS anti-vibration mounts consist of an outer cylindrical shell and an inner truncated support, separated by two elastomeric components. Unlike adhered mounts, this model effectively absorbs shocks through friction between the elastomer and metal parts. It functions both in upward and downward compression, as well as 360° in the radial direction. Although it is not optimal for isolating low and mid frequencies, it can be adapted for demanding environments by selecting elastomers resistant to high temperatures, oils, and extreme weather conditions.

ATP Request for a technical drawing

The AMC-Mecanocaucho® ATP anti-vibration mounts are designed to effectively isolate mid-to-high-frequency vibrations for various types of machinery (generators, motor pumps, compressors, hydraulic units, etc.). They feature an upper bell-shaped housing, protecting the rubber from oil splashes, fuel, dust, and other contaminants. The elastomer used is a specially formulated natural rubber, ensuring excellent durability under repeated stress. These mounts support high static loads while tolerating occasional dynamic overloads. Their radial stiffness is approximately four times higher than their axial stiffness, enhancing stability and control.

AT Request for a technical drawing

The AMC-Mecanocaucho® AT anti-vibration mounts are designed for mid-to-high-frequency isolation. They consist of a rubber tubing doubly bonded between two concentric tubular metal frames. The inner frame is a cylindrical tube, while the outer frame is also tubular and includes a flange with mounting holes. Their radial elasticity is about four times greater than their axial elasticity, ensuring effective damping. Available in three hardness levels (45Sh, 60Sh, and 75Sh), they allow precise adaptation according to load and vibration requirements.

Transformer Mount Request for a technical drawing

The AMC-Mecanocaucho® Transformer Mount anti-vibration mounts integrate a spring and a damper into a single compact unit, providing an optimal vibration isolation solution for transformers. Their internal structure includes a vulcanized rubber piece adhered to two metal components forming the mount. The natural rubber used is specially formulated for long-lasting performance, while the metal parts feature anti-corrosion treatment, ensuring durability in outdoor conditions. The indicated load values correspond to the maximum static capacities, with tolerance for occasional dynamic overloads.

Heavy Load Mount Request for a technical drawing

The AMC-Mecanocaucho® Heavy Load Mount anti-vibration mounts combine metal and rubber to effectively reduce vibrations in all types of fixed machinery. Designed for heavy industrial applications, they can support up to 15,000kg per isolator, ensuring optimal performance even under extreme loads.

Levelling Mount Request for a technical drawing

The AMC-Mecanocaucho® Levelling Mount anti-vibration mounts machine feet are designed to isolate stationary machines from the ground, preventing direct contact and reducing vibration transmission. Their installation is simple and requires no mechanical anchoring. However, precise leveling of the machine is essential to prevent lateral sliding and ensure optimal stability.

Anti-Vibration Pads & Blocks Request for a technical drawing

The AMC-Mecanocaucho® Anti-Vibration Pads & Blocks anti-vibration mounts provide vibration isolation without requiring mechanical anchoring. They are easy to install, pads can be cut to the desired dimensions, ensuring they remain within maximum static load limits, and then placed under the machine, with or without adhesive. However, their effectiveness is limited for interference frequencies below 30Hz.

Elastomeric Spring Request for a technical drawing

The AMC-Mecanocaucho® Elastomeric Spring anti-vibration mounts are specifically designed for applications requiring a high level of vibration isolation. Their design allows for large static deflections, making them particularly suitable for vertical vibrations. Thanks to the damping properties of rubber, they provide excellent motion control while withstanding highly corrosive environments.

Reinforced Elastomeric Spring Request for a technical drawing

The AMC-Mecanocaucho® Reinforced Elastomeric Spring anti-vibration mounts combine rubber and textile fibers for enhanced durability and minimal maintenance. As an alternative to steel springs, they do not deteriorate in humid or corrosive environments and provide exceptional vibration isolation due to their low natural frequencies, which limit vibration transmissibility. Their use significantly reduces noise and vibrations, extending the lifespan of equipment. Recommended operating temperature: -40°C to +75°C.

HI-SEC Request for a technical drawing

The AMC-Mecanocaucho® HI-SEC height adjustment system is designed to provide precise leveling adjustment while ensuring corrosion protection thanks to its DIN 50691/ISO 2081-compliant coating. However, DNV regulations for ships and high-speed vessels (January 2016 Edition, Part 4, Chapter 3, Section 1, F202) state that standard height adjusters are not suitable for dynamic loads due to cyclic bending moments. Therefore, leveling must be performed using SHIM plates, the recommended method by AMC-Mecanocaucho®. The HI-SEC system is recommended only for applications requiring a maximum adjustment of 5mm to 10mm, depending on the model, but it does not meet the requirements of naval classification bodies. It allows for precise adjustments with a fine-threaded M70 section.

S-HA Request for a technical drawing

The AMC-Mecanocaucho® S-HA height adjustment system is designed to provide precise leveling adjustment while ensuring corrosion protection thanks to its DIN 50691/ISO 2081-compliant coating. However, DNV regulations for ships and high-speed vessels (January 2016 Edition, Part 4, Chapter 3, Section 1, F202) state that standard height adjusters are not suitable for dynamic loads due to cyclic bending moments. Therefore, leveling must be performed using SHIM plates, the recommended method by AMC-Mecanocaucho®. The S-HA system is recommended only for applications requiring an adjustment of less than 3mm and does not meet the requirements of naval classification bodies.

SHIM Request for a technical drawing

The AMC-Mecanocaucho® SHIM plates are specifically designed for marine engine leveling, replacing traditional height adjustment systems. Made of corrosion-resistant steel, they ensure optimal resistance to marine environments. Unlike traditional leveling systems, SHIM plates are not subject to cyclic bending moments, significantly reducing the risk of failure. Compliant with maritime certification requirements, they meet the DNV regulations (January 2016 Edition, Part 4, Chapter 3, Section 1, F202).

FZM Steel Request for a technical drawing

The AMC-Mecanocaucho® FZM Steel anti-vibration mounts, made of stainless steel, are ideal for mobile applications requiring resistance to high temperatures of up to 300°C. Their design ensures balanced rigidity in compression and tension, making them particularly suitable for vertical vibrations. These mounts feature an fail-safe system, an aluminum-cast flange for high dynamic loads, and an optimized stainless steel wire mesh to limit relative displacements under stress. Thanks to their advanced anti-corrosion properties, they offer superior performance compared to traditional marine mounts, ensuring greater stability and effective vibration damping.

Akustik Pipe Request for a technical drawing

The AMC-Mecanocaucho® Austik Pipe anti-vibration mounts combine a Sylomer® element with a steel housing for optimal isolation of both rigid and flexible pipes. Their design simplifies installation thanks to a removable Sylomer® section and a single fixing hole. Automatic preloading is achieved by tightening the bolt until the housing firmly contacts the base. Perfectly suited for both static and dynamic applications, these mounts provide excellent acoustic isolation, corrosion protection, and multidirectional mounting capabilities. Additionally, their robust construction ensures maintenance-free operation with no premature aging.

FZ Sylomer® Request for a technical drawing

The AMC-Mecanocaucho® FZ Sylomer® anti-vibration mounts are designed with a Sylomer® elastic element. Their internal structure features two metal reinforcements encased in this elastic material. The external reinforcement includes four mounting holes, ensuring a secure anchoring to the chassis. Its diameter, larger than the external reinforcement, enhances mechanical resistance against tearing forces. For mobile applications, the FZ Sylomer® mount integrates a washer that acts as a fail-safe system, effectively limiting upward vertical movement in case of tensile shocks. Thanks to its robust metal construction, this mount is especially suited for off-road applications. Its corrosion-resistant metal components also make it ideal for outdoor use. Lastly, the Sylomer® polyurethane provides excellent resistance to oils and functions efficiently within a temperature range of -30°C to 70°C.

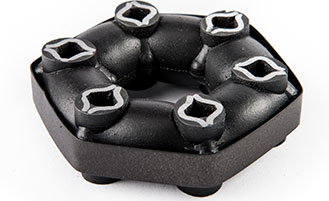

Elastic Coupling Request for a technical drawing

The AMC Mecanocaucho® Elastic coupling mount is used to transmit torque to an input shaft that drives an output shaft. Elastic coupling is needed when machines are mounted on antivibration mounts.

Installation Guide

Recommendations regarding the installation of AMC Mecanocaucho® products.
